Small Scale Vegetable Seed Frying and Oil Extraction and Oil Filter System

Small scale vegetable seeds frying and oil extraction and oil filter production line system including the vegetable seeds infeed hopper, frying machine with furnace, primary seeds oil press machine, secondary oil cakes extraction machine and finished oil filter machine.

We're here to help: Easy ways to get the answers you need.

CHAT NOW

Product Introduction

Small Scale Vegetable Seeds Frying And Oil Extraction And Oil Filter Production Line System

Small scale vegetable seeds frying and oil extraction and oil filter production line system including the vegetable seeds infeed hopper, frying machine with furnace, primary seeds oil press machine, secondary oil cakes extraction machine and finished oil filter machine.
The Small scale vegetable seeds frying and oil extraction and oil filter production line is quite compact and easy to operate, suitable for home use and small scale oil plant.
It is a automatic operation system.

Sheller Machine


Small Screw Oil Expller Machine

Oil Press Machine Specification:
(A, Mean: Multi-functional Automatic Oil Press With Vacuum Filter System)
Specification Speed of press screw Motor Power Capacity(set) Weight(kg) Dimension(mm)(L*W*H) Residual oil rate
6YL-68 35-39r/m 5.5KW 40-50 kg/h 300 900x450x640 <6.5%
6YL-68A 35-39r/m 5.5KW 40-50 kg/h 250 800x440x765 <7%
6YL-80 30-45 r/m Y160L-6-5.5KW 80-150kg/h \ 1650x1150x1750 \
6YL-80A 20-30 r/m 5.5KW 150-200kg/h  820

1420*635*1480

&1135*530*520

<6 %
6YL-95A 35-42 r/m 7.5KW 150-200kg/h  650 1860X1660X1680 <7%
6YL-95B \ \ \ \ \ \
6YL-100 30-40r/m 7.5KW 150-200kg/h  420 1610X615X1260 6-8(%)
6YL-100A 35-42 r/m 7.5KW 150-200kg/h  750 1850X1700X1780 6-8(%)
6YL-105 30-40 r/m 11KW 80-100kg/h 650 1870*640*1200 5.5-7.5%
6YL-120 30-40 r/m Y160L-6-11KW  200-300kg/h  700 1750x640x131 5.5-8.0%
6YL-125 35-39r/m Y125L-6-30KW  250-330kg/h  800 2220x550x750 <6%
6YL-125A 28-38r/m 15KW 210-290kg/h  500 1950x760x2100 <7%
6YL-130 28-40 r/m Y180L-6-15KW  250-300kg/h  800 2200x1600x2150 6-8%
6YL-130A 35-42 r/m 15KW 300-500kg/h  1150 2250X1600X1920 6-8%
6YL-150 35-39r/m 18.5KW 400-550kg/h  780 1980*680*1460 ≤5.5
6YL-150A \ \ \ \ \ \
6YL-160 28-40 r/m Y200L-6-18.5KW 400-600kg/h  1500 2500x1600x2500 6-7%
6YL-160A \ 18.5KW 600-700kg/h  1800 2600X940X1920 <7%

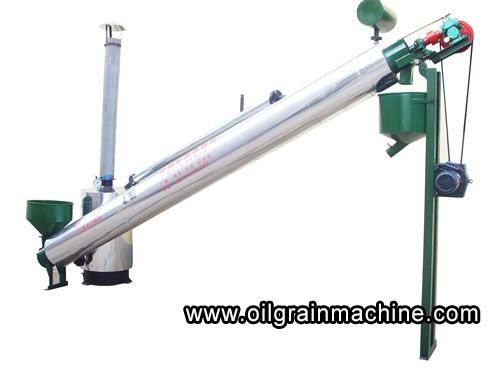

Vegetable seeds New Type Frying machine with stoves


Finished Oil Filter Machine (Centrifugal Filter Machine)

Plate Press Filter Machine with Electrical Heating



Primary Oil Extraction and Secondary Oil Extraction Prcess

Single Oil Press System with Oil Plate Filter Machine




Small Scale Vegetable Seeds Frying And Oil Extraction And Oil Filter Production Line System
