Animal Feed Processing

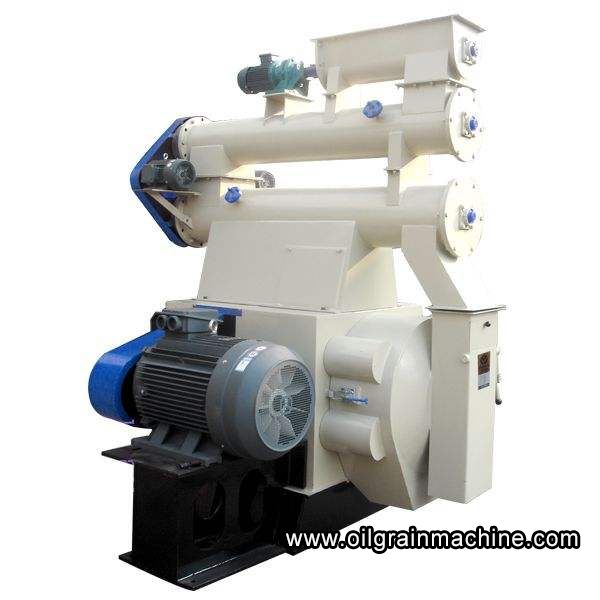

Feed Pellet Granulator Mill
Feed pellet making machine can be single used or apply to animal feed pellet plant.
Can Make pellets for chicken, bird, duck, rabbit, pig, cattle, cow, sheep, horse etc. If Customers materials have grass, we can equipped force-feeding system for you.
Can Make pellets for chicken, bird, duck, rabbit, pig, cattle, cow, sheep, horse etc. If Customers materials have grass, we can equipped force-feeding system for you.
We're here to help: Easy ways to get the answers you need.
Product Introduction
feed pellet making machine can be single used or apply to animal feed pellet plant.
Can Make pellets for chicken, bird, duck, rabbit, pig, cattle, cow, sheep, horse etc. If Customers materials have grass, we can equipped force-feeding system for you.
Features:
1,With efficient first-stage gear transmission, the energy can be transferred to the maximum extent;
2,The all-stainless steel feeder with a variable pitch anti-arching mechanism is controlled by an imported variable frequency speed regulator;
3,An axial steam inflow mode is applied to the enlarged stainless steel conditioner, which greatly shortens the conditioning and curing time and improves the effect;
4,Due to the adoption of carburization quenching as well as gear grinding for the hard tooth surface, high-precision transmission gears and gear shafts feature stable transmission, low noise and long service life;
5,The materials of the gear box and high precision of the transmission hole come from the casting technologies of professional casting factories as well as the guarantee of CNC machining equipment;
6,It is equipped with a main transmission system bearing as well as imported high-quality oil seals; in addition, a lubricating oil return system is particularly set, ensuring reliable bearing lubrication;
7,The ring die is connected with the transmission wheel through a three-piece quick-release precisely cast hoop, so the ring die can be conveniently and quickly dismounted;
8,Manufactured totally by stainless steel, the door cover and the chute feature strong corrosion resistance and long service life;
9,Due to the adoption of a novel snakelike spring coupling, the motor and the gear shaft feature convenient assembly and disassembly, reliable transmission and high efficiency.
Animal Feed Pelleting Machine Parameters:
No | Item | Pellet Mill Specification | |||||||
SZLH32 | SZLH35 | SZLH40 | SZLH42 | SZLH508 | SZLH558 | SZLH678 | SZLH768 | ||
1 | Capacity | 2-5T/H | 2-8T/H | 2-10T/H | 3-12T/H | 4-20T/H | 6-22T/H | 10-30T/H | 12-35T/H |
2 | Main power | 37kw | 55kw | 75/90kw | 110kw | 132/160kw | 160/180/200kw | 220/250kw | 280/315kw |
3 | Power of feeder | 0.55kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 2.2kw | 2.2kw | 2.2kw |
4 | Power of conditioner | 2.2kw | 3kw | 3kw | 5.5kw | 7.5kw | 7.5kw | 11kw | 15kw |
5 | Inner diameter of die | 320mm | 350mm | 400mm | 420mm | 508mm | 558mm | 678mm | 768mm |
6 | Die speed | 305RPM | 336RPM | 307RPM | 287RPM | 287RPM | 287RPM | 287RPM | 287RPM |
7 | Feeder speed | 12-120RPM | |||||||
8 | Conditioner speed | 350RPM | |||||||
9 | Pellets size | Diameter 2,3,4,4.5,5,6,8,10mm | |||||||
10 | Rollers number | 2 pcs | |||||||
11 | Roller OD | 140mm | 165mm | 190mm | 206mm | 222mm | 240mm | 256mm | 280mm |
12 | Pellets rate of briquette | ≥95% | |||||||
13 | Percentage of powdered pellets | ≤12% | |||||||
14 | Stability of pellets in the water | ≥20 MIN | |||||||
15 | Noise | ≤86dB(A) | ≤90dB(A) | ||||||
16 | Die working temperature | ≤85℃ | |||||||
17 | Steam working pressure | 0.1-0.4Mpa | |||||||
18 | Steam consumption | ≥0.3t/h | ≥0.3t/h | ≥0.4t/h | ≥0.5t/h | ≥1t/h | ≥1t/h | ≥1.5t/h | ≥1.5t/h |
19 | Steam temperature | 130-150℃ |
Technical parameters
SZLH250 Pellet Mill
SZLH250 Pellet Mill Parameters:
SZLH250 Pellet Mill Parameters:
Items | Technical Parameter (SZLH250) |
Production Capacity | 1.5-2.5t/h |
Power of Main Motor | 380V 50Hz 3 Phase 22 KW (Can be customized) |
Power of Feeding Screw Motor | 0.75 KW |
Power of Conditioner | 1.5 KW |
Inner Diameter of ring die | Φ250mm |
Efficient width of ring die | 80mm |
Speed of ring die | 300rpm |
Speed of feeding screw | 12-120rpm |
Speed of Conditioner | 350rpm |
Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
Amount of roller | 2 |
Diameter of Roller | Φ110mm |
Pellet Ratio of Briquetting | ≥ 95% |
Percentage of powdered Pellet | ≤12% |
Stability of pellet in the water | ≥20min |
Noise | ≤85dB(A) |
Working temperature of ring die | ≤85℃ |
Working pressure of steam | 0.3Mpa |
Steam consumption | 50kg/H |
Temperature of steam | 130-150℃ |
Packing Size (length×width×height) | 2450*1550*2200mm |
Machine Size | 2250*1430*2040mm |
Net/Gross Weight | 1150KG/1445kg |
FAQ
If you're interested in our feed pellet processing machines, please kindly tell us the following requirement:
1. What's the feed pellet production capacity do you want?
R:we can supply feed pellet mill or production line with output from 0.1-30t/h.
2. What's your feed raw material and size and feed formula content?
R:Tell us feed material formulation,then we can design the suitable production line based on actual demand.
3. What's the final feed pellet diameter or size do you want or for what animal?
R:Our equipment can produce feed pellet diameter 2-8mm,for chick feed,we can produce crumb feed particle.
for chicken? cow? sheep?fish?horse? cow? or pig?or what purpose?
1. What's the feed pellet production capacity do you want?
R:we can supply feed pellet mill or production line with output from 0.1-30t/h.
2. What's your feed raw material and size and feed formula content?
R:Tell us feed material formulation,then we can design the suitable production line based on actual demand.
3. What's the final feed pellet diameter or size do you want or for what animal?
R:Our equipment can produce feed pellet diameter 2-8mm,for chick feed,we can produce crumb feed particle.
for chicken? cow? sheep?fish?horse? cow? or pig?or what purpose?
